DIY, Kits and Parts
DIY Completely Free or Only $12.99 a Parts Kit
(more than $10 savings)

Time to complete a DIY mod kit start to finish is roughly 60-120 minutes
This is a DIY versions of the Mod, and it is recommend to have advanced solder experience. DIY and Kits are recommended for electronic professionals only.

You can completely DIY this mod, making everything at home. Options to order all parts of the Mod at any stage or make all parts from raw materials with free instructions below.

Kits come with a prepared PCB, pre-programmed IC, all backlight panels precision cut, and all listed components needed for the build, only requiring soldering. Find Kit links below.

Machines used: Cricut, CNC Mill
Electronic skillset: Advanced Soldering, IC programming

All materials and material sources are provided. All instructions are shared for each part. G-codes, Arduino Codes, Schematics, PCB Layout, and Cricut files are provided for each part as required. Check the parts below for specific information.

Programming the ATtiny:

Manufacturing a PCB:

Customized Colored Backer Images:
(Use Cricut matching file for Cutting)

Precision Cutting of Backlight Panels:

PCB Component Layout and Electrical Schematics

Parts Kits Purchase Links:

DIY Solder only Kit Break-Down
Complete Electronic Portion $15.80
1 x Pre-Programmed ATTiny25V (SU)                     $3.99
1x Electrolytic Capacitor - 100uF 16V (Can) $0.37
1 x MCP1640 (SOT-23)                                               $1.18
1x SRN4026-4R7M (PWR Inductor 4mm x 4mm) $0.61
1 x 10nF Ceramic Capacitor (1608 metric)               $0.56
1 x 4.7uF Ceramic Capacitor (1608 metric)              $0.14
1 x 10uF Ceramic Capacitor (1608 metric)              $0.19
1 x 976kOhm SMD Resistor (1608 metric)
1 x 536kOhm SMD Resistor (1608 metric)
8 x 100-200 Ohm SMD Resistor (1608 metric)       $0.99 (DIY SMD Res. 10pk)
6 x Backlight LEDs (1608 metric)
2 x FX LEDs (1608 metric)                                      $3.49 (DIY LED 8pk)
5 x 4 inch Silicone Wire (28awg)                             $0.29
1 x FX Light Mod PCB Part A + B                          $3.99
Complete Backlight Dispersion Screen Package $2.02
1 x Diffuser Panel                                                     $0.49
1 x Front Reflector Panel                                          $0.09
1 x Rear Reflector Panel                                           $0.49
5 x Light Guide Panel                                               $0.95

Total Mod Parts Individually purchased              $17.82



Itemized Parts for DIY and/or Replacements to Purchase

ATTiny25V 10 (SU) (Uncoded)                        $2.10
Programming Instructions --> DIGIMON LIGHT MOD: Programming IC
This Code has parameters that are easily modified to customize a build. Example of this below
/////////////////////////////////////////////////////////////////////////////////////////////////////////////////////
//Defaults that could be changed before Programming IC as prefered
//These will be the preset everytime the Digimon screen comes on
int RedState = 1;      // Sketch Default is 1, set for Red Sound FX. Used to Set differnt Sound Operation. 0 ignore sound signal, 1 is red signal for buzzer (Default), 2 is just flash for buzzer
int LEDState = 0;      // Sketch Default is 0, set the default Backlight function for when the Digimon Screen turns on. Used to set different brightness on/off setting. 0 for OFF (Default) and 1 - 5 for BackLight
#define TAPSETAMOUNT 8      //The amount of C-Button Taps Before FX Change
#define TAPOFFSET 2         //The amount of C-Button Taps plus a final Hold for instant backlight OFF
#define HELDSETAMOUNT 1000  //Time in millis C-button is pushed for backlight 1000ms = 1sec
#define LevelOff 0    //0%
#define Level1 51      //20% duty cycle
#define Level2 89      //35% duty cycle
#define Level3 128     //50% duty cycle
#define Level4 166     //65% duty cycle
#define Level5 204     //80% duty cycle
//////////////////////////////////////////////////////////////////////////////////////////////////////////////////////

ATTiny25V 10 (SU) (Pre-Coded with FX Light MOD Program)                       $3.99

Electrolytic Capacitor - 100uF 16V     (Through Hole/ Can)            $0.37
This Capacitor is optional but recommend to extend battery life, check out the science -> DIGIMON LIGHT MOD: Battery Life Science
MCP1640T-I/CHY (SOT-23) (Boost Regulator)                $1.18



SRN4026-4R7M (4.7uH 1.4A 48MOhm SMD 4mm x 4mm) (PWR IND)            $0.61


10nF Ceramic Capacitor    (1608 metric)                  $0.56

1 x 4.7uF Ceramic Capacitor (1608 metric)               $0.14

1 x 10uF Ceramic Capacitor (1608 metric)               $0.19



976kOhm SMD Resistor (1608 metric) $0.15

536kOhm SMD Resistor (1608 metric) $0.15

100 Ohm SMD Resistor  (1608 metric) (Marked 01A)  $0.15

200 Ohm SMD Resistor  (1608 metric) (Marked 30A)  $0.15

Resistors (Pack 10, for 1 DIY Kit)                            $0.99


LEDs BLUE (1608 metric)                 $0.46

LEDs RED (1608 metric)                 $0.60

LEDs GREEN (1608 metric)            $0.60

LEDs YELLOW (1608 metric)         $0.60

LEDs ORANGE (1608 metric)         $0.60

LEDs WHITE      (2216/2-DFN)             $0.60

LEDs (8 Pack, for 1 DIY Kit)                 $3.49


FX Light Mod PCB V2.1 Part A 24.4mm x 12 mm x 0.4mm                  $2.99
FX Light Mod PCB V2.1 Part B 24.4mm x 4 mm x 0.4mm                  $0.99
DIY PCB with a CNC Mill using a 0.2mm bit or a <20 degree V-bit
Material Used is Dual Side PCB 0.4mm -> Blank Copper Clad
CNC Mill and G-Code Instructions -> DIGIMON LIGHT MOD: G-Code Instructions












5 x 4 inch Silicone Wire (28awg)                $0.29 for replacement pack

A New Lithium Batteries CR2032                $0.99
Great Deal on Batteries -> CR2032 (20 pack)
Tons of Information about the CR2032 Battery ->DIGIMON LIGHT MOD: Battery Life Science

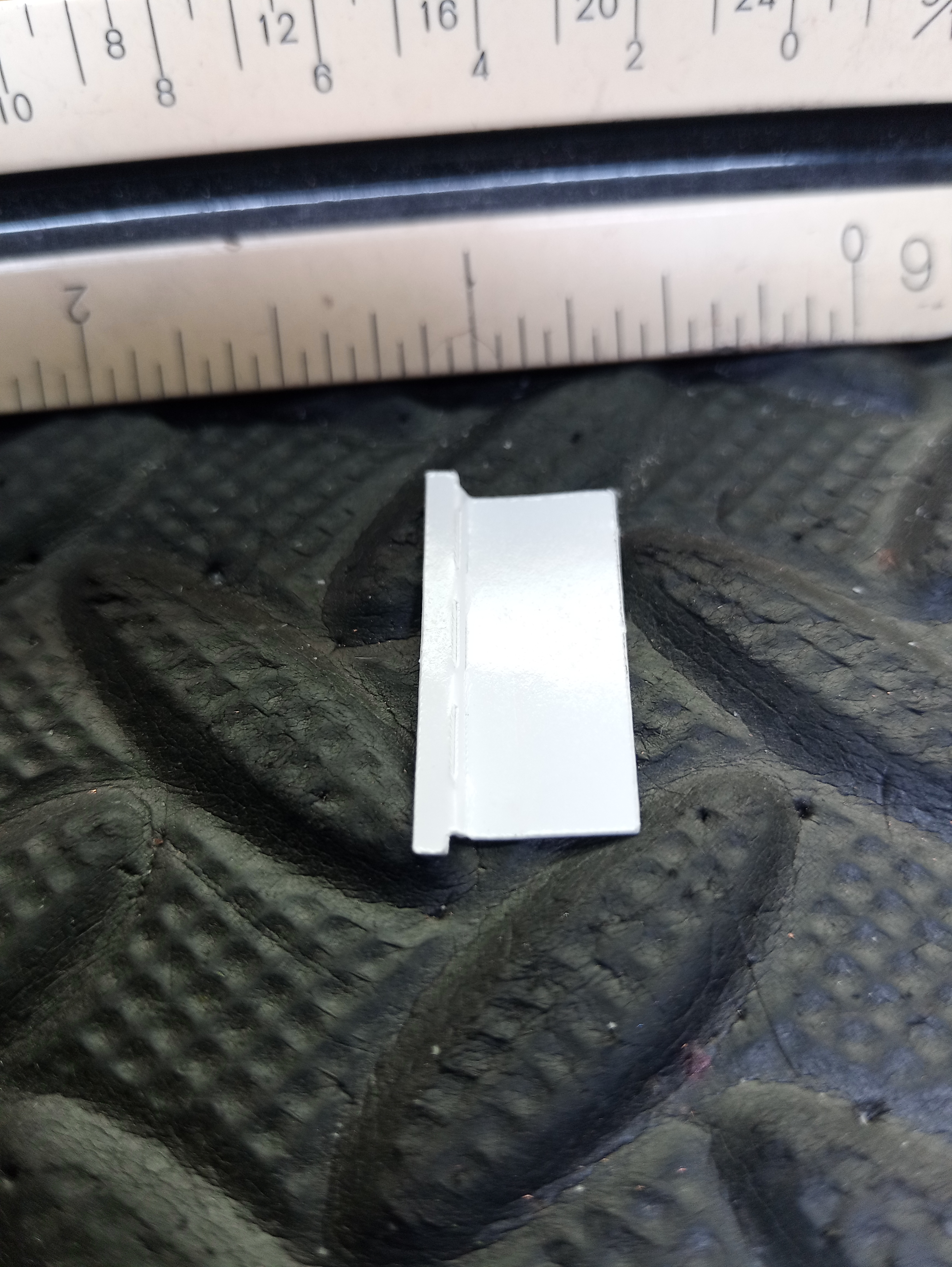

Light Diffuser Panel             $0.49 (Must be bent at two 90 degrees prior to install)
Material Used is Diffuser panel located in the top layer of the backlight of most flat screen
LCD TVs and Monitors, even old ones as long.
Light Diffuser Panel Cricut file -> Light Diffuser Panel Cricut File

Flat (Unfolded)



Folded



Rear Reflector Panel (Blank or Specific Colored) (Custom Prints Available)             $0.49
(All 3 sides must be bent up at 90 degrees prior to install)
Material Used is Premium Photopaper
Rear Reflector Panel Cricut File -> Rear Reflector Panel Cricut File

Flat (Unfolded)



Folded


Multiple Colorful Backgrounds to Pick from
ABC
DEF

Front Reflector Panel                    $0.09
(Must be folded at two 90 degrees prior to install)
Material Used is Premium Photopaper
Front Reflector Panel Cricut File -> Front Reflector Panel Cricut File

Flat (Unfolded)



Folded



Light Guide Panel                        $0.19
(Must stack 4-5 them to make up a light guide. Preferably stack all panels with their rough edges all facing one direction, either forwards or backwards. This will increase lightguide efficiency.)
Material Used is 6 mil Clear Mylar -> https://amzn.to/46gMCx9
Light Guide Panel Cricut File -> Light Guide Panel Cricut File
