Customize Each LED Color

Instructions for Custom Lighting

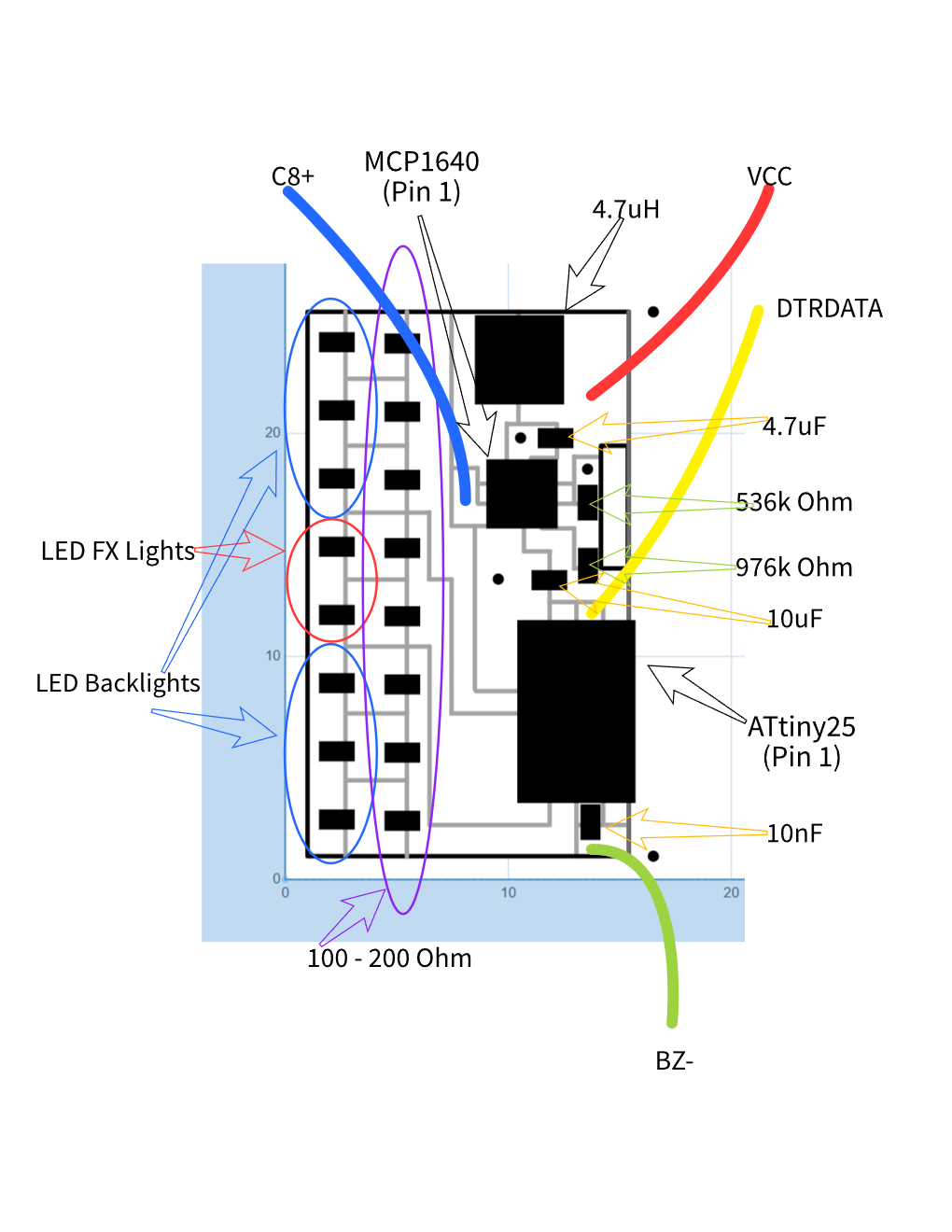

- The backlight has a single side of 8 LED's.
- All LED's are roughly evenly spaced over 23mm, with the FX LED's located Directly in the Center
- The Backlight order of LEDs from top to bottom is a follows:
3 Backlight LEDs (Numbered 1-3)
2 FX LEDs (Numbered 4-5)
3 Backlight LEDs (Numbered 6-8)

Each individual LED color may be selected to give hundreds of different combinations.

Mix up any combination you wish for you order,
and send in the Number combinations like the examples below.

Available Colors of LED's:
White, Red, Orange, Yellow, Green, Blue

Examples of Different Models:

The Basic
(One Color Backlight, One Color FX)

1. Blue

2. Blue

3. Blue

4. Red

5. Red

6. Blue

7. Blue

8. Blue

The Color Mix
(Use two or more different Colors to Blend into a new Color)
(in this example Backlight would be a Rainbow Blended Whitish, while the FX would be a transition from Blue to Green to Yellow.)

1. Blue

2. Green

3. Red

4. Blue

5. Yellow

6. Blue

7. Green

8. Red

The Scenic Tone Mix
(Use two or more different Colors to Blend into a new Color)
(in this example Backlight would be lower side green and upper side blue to match ground and sky, while the FX light would be a flash of Yellow.)

1. Blue

2. Blue

3. Blue

4. Yellow

5. Yellow

6. Green

7. Green

8. Green

Light Mixing Formulas

Keep in mind this is just some ideas of colors

This does not take into account that we have access to yellow and orange LEDs for convenience.

This also does not take into account that the intensity each LED is set to by its resistor, which can also be adjusted and specified.

Red Lights Only

Green Lights Only

Blue Lights Only

2 Red + 1 Green = Orange

1 Red + 1 Green = Yellow

1 Red + 1 Blue = Purple

2 Red + 1 Blue = Pink

1 Red + 1 Green + 1 Blue = White
